galvanized welded wire mesh
The structure of this kind of wire mesh is strong, lasting and rust-resistant.
There are two ways of galvanization: hot-dip galvanized (hot galvanized) and cold (electro) galvanized
Available: galvanized after welding or galvanized before welding

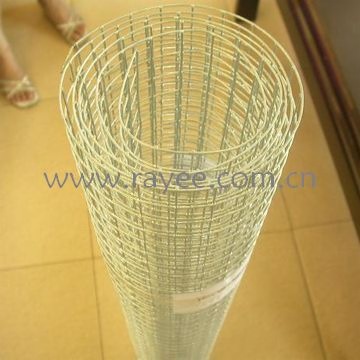

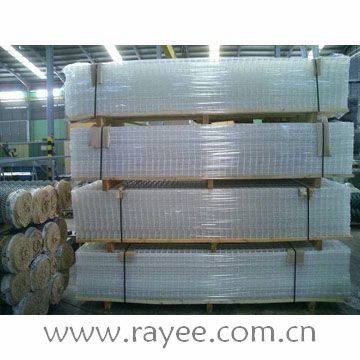

Two type: in rolls or in panel
|
Specification
|
|
Opening
|
Wire gauge
(BWG)
|
|
In inch
|
In metric unit (mm)
|
|
1/4”X1/4”
|
6.4mmX6.4mm
|
22,23,24
|
|
3/8”X3/8”
|
10.6mmX10.6mm
|
19,20,21,22
|
|
1/2”X1/2”
|
12.7mmX12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8”X5/8”
|
16mmX16mm
|
18,19,20,21
|
|
3/4”X3/4”
|
19.1mmX19.1mm
|
16,17,18,19,20,21
|
|
1”X1/2”
|
25.4mmX12.7mm
|
16,17,18,19,20,21
|
|
1-1/2”X1-1/2”
|
38mmX38mm
|
14,15, 16,17,18,19
|
|
1”X2”
|
25.4mmX50.8mm
|
14,15, 16
|
|
2”X2”
|
50.8mmX50.8mm
|
12,13, 14,15, 16
|
|
Technical note:
1. Standard roll length: 30m; width: 0.5m-1.8m
2. Special sizes available as your request
3. Packing: in water proof paper in rolls. Custom packing available as your request
|
