PVC Coated Wire Mesh Wire diameter: 4.0-6.0mm,opening 50x200mm

  • PVC Coated Wire Mesh
  • PVC Coated Wire Mesh
Item Code:Wire diameter: 4.0-6.0mm,opening 50x200mm Features: PVC Coated Wire Mesh Material: galvanized wire and PVC coated wire Wire diameter: 4.0-6.0mm Mesh size: the opening size available is 50x200mm, also it can be 50x150mm,75x150mm Finished with three folds Pipe against burglars: 50x70mm, 70x100mm C –type pipe: 50x50mm Square pipe: 40x60mm, 60x80mm
  • Description

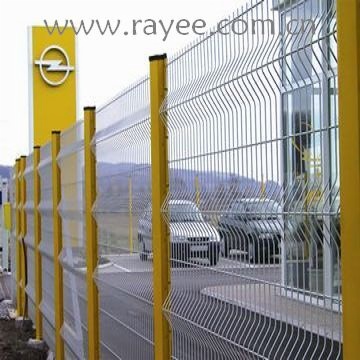

PVC Coated Wire Mesh


Inside electro galvanized or hot-dip galvanized wire, then spraying RAL6005 or RAL9010, or as your request.

Product Description
Opening (mm)
Wire diameter (mm)
L X W(mm)
Weight(kg)
200x50
4
2500x1030
5.3
200x50
4
2500x1230
6.3
200x50
4
2500x1530
7.84
200x50
4
2500x2030
10.4
200x50
5
2500x1030
8.24
200x50
5
2500x1230
9.84
200x50
5
2500x1530
12.24
200x50
5
2500x2030
16.24
Note:1)it is galvanized and powder paint with ral as your requirement
      2)it is finished with three folds
      3)pipe:it can be the size 50x70mm,70x100mm,also can be square pipe40x60mm

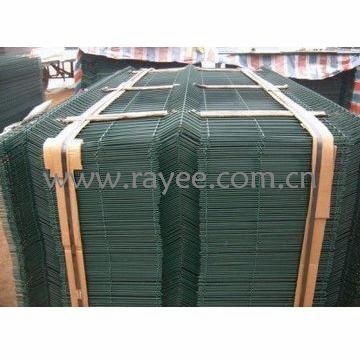

      4)packing:iron and wooden pallet
      5)loading: wire mesh panel special design with protection of damages by iron pallet
