razor wire      BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65

razor wire
Item Code:BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65 Features:razor wire Specification: BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65
<< Prev Back Next >>
  • Description

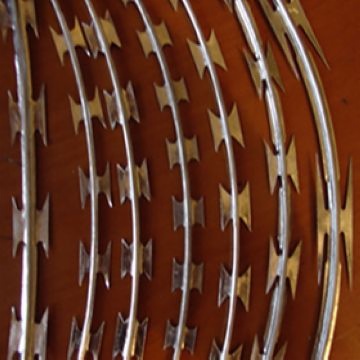

razor wire

Specification:
BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65
A- Razor blade specification:
Reference No. : BTO-22
Wire Dia.: 2.5 mm -+ 0.1
Thickness (razor blade): 0.5 mm -+ 0.05
Barb length (razor blade): 22 mm -+ 1
Barb width (razor blade): 15 mm -+ 1
Barb spacing (razor blade): 34 mm -+ 1

B- Barbed type wire specification:
Outside diameter: 900mm
No. of loops: 36 loops
Stander length per coil: 9 -10M (5 clips)
Type: BTO- 22
Note: concertina crossed type razor barbed

C- Other details:
Weight: 10 kg/coil (maximum)
Tensile of barb: 600-700 N/mm2
Tensile of inside wire: 1500N/MM2
Zinc content: galvanized 12-15 g/m2, hot-dip galvanized 60-200g/m2
