safety fence      opening size 50x200mm

Item Code:opening size 50x200mm Features:wire mesh Wire diameter: 4.0mm, 5.0mm, 6.0mm opening size 50x200mm,50x150mm, 75x150mm, 50x100mm Mesh length: 2.5m post Type:square post,round post,c type post Size:50x70mm,70x100mm,50x50mm,40x60mm,60x80mm Thickness:1mm,1.2mm,1.5mm,2mm
  • Description

safety fence

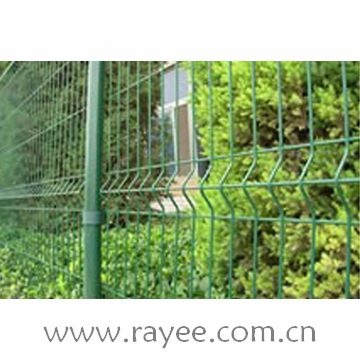

Wire mesh panel
Wire mesh panel adopts the high quality dish as the raw material. Wire meshes are the welding panels through coated double layer. Wire mesh panel has the characteristics of anti-corrosion, aging resistance, sunshine resistance and weather resistance. Wire mesh fence netting can be kept for about 10 years not fade.

Material: galvanized wire and PVC coated wire
Wire diameter: 4.0mm, 5.0mm, 6.0mm
Mesh size: the opening size available is 50x200mm; also it can be 50x150mm, 75x150mm, 50x100mm
Finished with three folds
Length: 2.5m
Packing: iron pallet, special design with protection of damage.
Characteristics: high strength, good steel natural capacity, wonderful shape, wild field of vision, easy to install, best weather resistance.

Post
The surface processing of post is divided into galvanized and coated. You can choose one arbitrarily. The top of the pipe is covered by plastic and rain defending hat. You can prepare to cover 30cm and add the base according to the environment and way of installing.

The size of post
Pipe against burglars: 50x70mm, 70x100mm
C type pipe: 50x50mm
Square pipe: 40x60mm, 60x80mm
Thickness: 1mm, 1.2mm, 1.5mm, 2mm
Height: 1080-2450mm
Packing: wooden pallet

The specification of mesh panel can be designed as your request, also mesh size can be designed as your request.
We can supply all kinds of post , round post, square post and c-type post , the size can be as your request.
Application: prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
