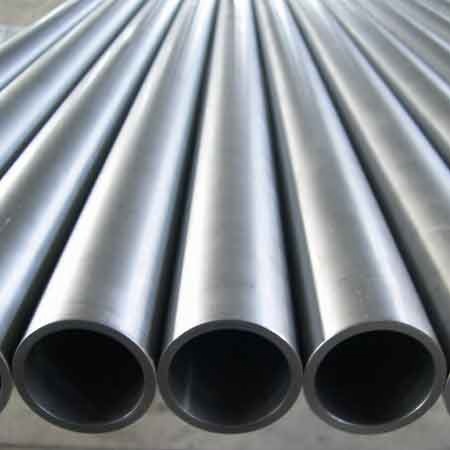

welded pipe      1.3 - 4.5 mm

Item Code:1.3 - 4.5 mm Features:black welded steel pipe,welded steel pipe,steel tube Both end screwed, with one socket, and protection on the other side outer diameter:20-165mm
  • Description
black welded steel pipe,welded steel pipe,steel tube
1) Standard:
a) ASTM: A53, A500, A178, A106, A179, A192, A213, A519
b) DIN: 17175, 2391
2) Outer diameter: 18 - 70mm
3) Wall thickness:0.4-1.5mm
Both end screwed , with one socket , and protection on the other side

Packing:
1) Hexagon bundles
2) Steel strapped
3) Oiled, varnished or stenciled
Other  Details :

1) Square steel pipe : Size from 19x19mm to 400x400mm, thickness from 0.5mm to 14mm

2) Rectangular steel pipe : Size from 10x20mm to 200x400mm,thickness from 0.5mm to 14mm.



Specification
 (mm)
Thickness
(mm)
13*15 19*19 20*20 24*24 25*25 *30*30 20*10 20*14 20*30 20*40 25*50 30*40
0.5-1.55
30*50 30*60 30*70 40*40 50*50 40*60
1.6-4.0
60*60  70*70  75*75 80*80  40*80  50*70 50*80 60*80 60*90  400*100  50*120  50*100  60*100 80*100  60*120
1.2-5.0
90*90 80*120  100*100  120*120  100*150  80*160
2.4-6.0
130*130 140*140 150*150 160*160 180*180 100*200 120*200 100*250 150*200 80*180  100*180  80*140
2.5-12.0
100*300 200*200 150*250  150*300  220*220
3.25-14.0
250*250 295*295 300*300 350*350 250*300 150*350  200*300 200*400 200*500 250*350 300*400
4.25-14.0
300*500 400*400
5.7-14.0


3) Cold rolled steel strip : Width from 32mm to 685mm, thickness from 0.3mm to 2.0mm.

4) Hot dip galvanized steel pipe : Size from 1/2" to 12", thickness from 1.3mm to 4.5mm.

5) And all the ERW pipes can be made by Pre-Galvanized steel pipe.




Specification
Outer diameter
(mm)
Thickness
(mm)
Galvanized steel pipe
1/2
20-21.3
1.3-2.2
3/4
25-26.8
1.3-2.2
1
31.5-33.5
1.4-2.2
1 1/4
41-42.3
1.5-2.2
1 1/2
46.5-48
1.7-2.2
2
58.5-60
1.7-2.2

Specification
Outer diameter
(mm)
Thickness
(mm)
Hot-dip galvanized steel pipe
1/2
20-21.3
2.5-2.75
3/4
25-26.8
2.5-2.75
1
31.5-33.5
2.5-3.75
1 1/4
41-42.3
2.5-3.75
1 1/2
46.5-48
2.5-3.5
2
58.5-60
2.5-3.5
2 1/2
74.5-75.5
2.0-3.5
3
87-88.5
2.3-4.0
4
113-114
2.5-4.0
5
139-140
2.75-4.5
6
165
2.75-4.5


6)Packing:
A) Hexagon bundles
B) Steel strapped
C) Oiled, varnished or stenciled
